The reference sensor for blowing sand, aeolian flux & wind monitoring
SandFlow SF4 is an advanced electro-acoustic instrument designed to monitor real-time aeolian sand fluxes and wind speed in desert, semi-arid and coastal environments. Extremely robust, sealed and maintenance-free, it captures bursts, storm events and daily cycles that conventional instruments miss.
Ideal for desert railways, roads, solar & wind farms, airports.
- Sealed electro-acoustic tube – no optical path to clog.
- Resists sandblasting, abrasion and extreme heat.

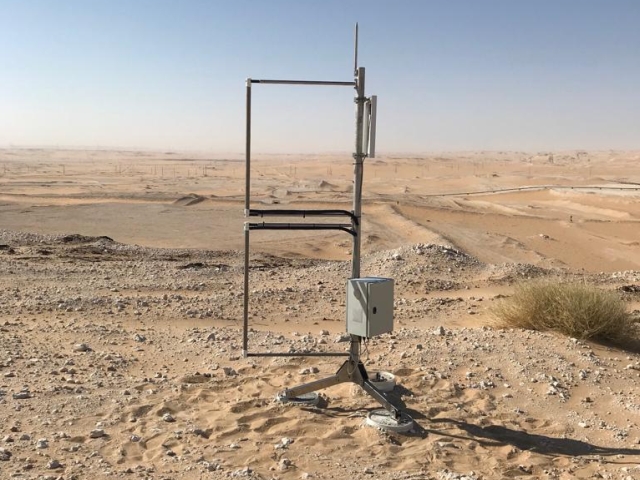

- Designed for remote, solar-powered autonomous stations.
Purpose-built for wind-driven sand transport
Quantifying sand transport — its intensity, timing and vertical structure — is essential to protect infrastructure and understand aeolian processes.
Wind-blown sand is a major operational hazard for railways, roads, solar and wind farms, airports and critical industrial sites in arid and semi-arid regions. It contributes to abrasion, dune migration, soiling, reduced visibility and unplanned maintenance. A simple wind measurement is not enough: operators must know when, where and how much sand is actually in motion.

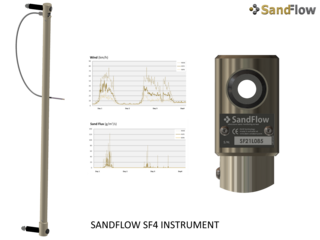

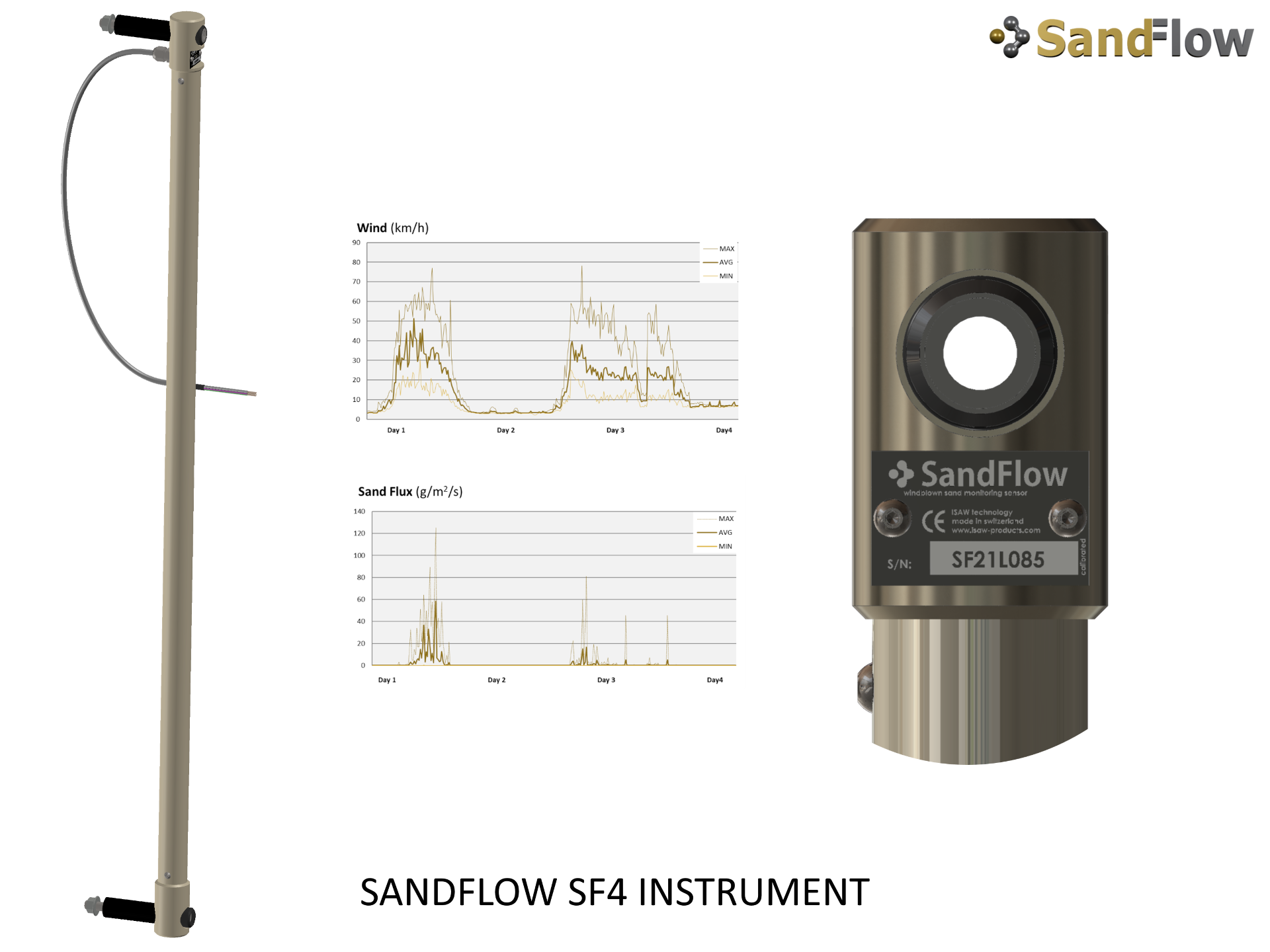

SandFlow SF4 is purpose-built for this task. A 1-meter hard-coated cylindrical tube detects both the impacts of saltating grains and the friction of airflow around the sensor, providing a vertically integrated measurement of sand transport in the near-surface layer — something point samplers or simple anemometers cannot offer.
Designed for 24/7 autonomous operation, SF4 is perfectly suited to permanent desert stations, infrastructure corridors and temporary deployments in sensitive areas such as solar farms or wind-turbine arrays. With ultra-low power consumption and rugged construction, it delivers reliable data in the most demanding conditions.
Why SandFlow SF4
SandFlow SF4 is engineered specifically for aeolian sand transport — saltation, reptation and near-surface blowing sand — rather than repurposed from precipitation or optical dust sensors. It detects the grain impacts that actually cause abrasion, fouling and deposition on infrastructure.
The instrument provides two calibrated, independent measurement channels: sand-drift intensity (g·m⁻²·s⁻¹) with cumulative load (g·m⁻²), and wind speed (m/s or km/h) derived from the acoustic signature of airflow around the tube. Signal processing separates sand impacts from pure wind excitation.
A sealed, solid tube with embedded electro-acoustic transducers eliminates wear, mechanical failure and routine maintenance. The abrasion-resistant outer surface withstands continuous sandblasting and extreme temperature cycles, keeping long-term operational costs low.
SandFlow SF4 is built for harsh climates: a wide operating temperature range, IP67 dust and water protection, sealed electronics and stainless-steel mounting arms ensure reliable performance in hot deserts, coastal dune fields and industrial environments.
Average current draw of only a few milliamps and configurable acquisition cycles (A–C–M mode) make SF4 ideal for solar- or battery-powered remote stations and GSM or LPWAN/IoT deployments.

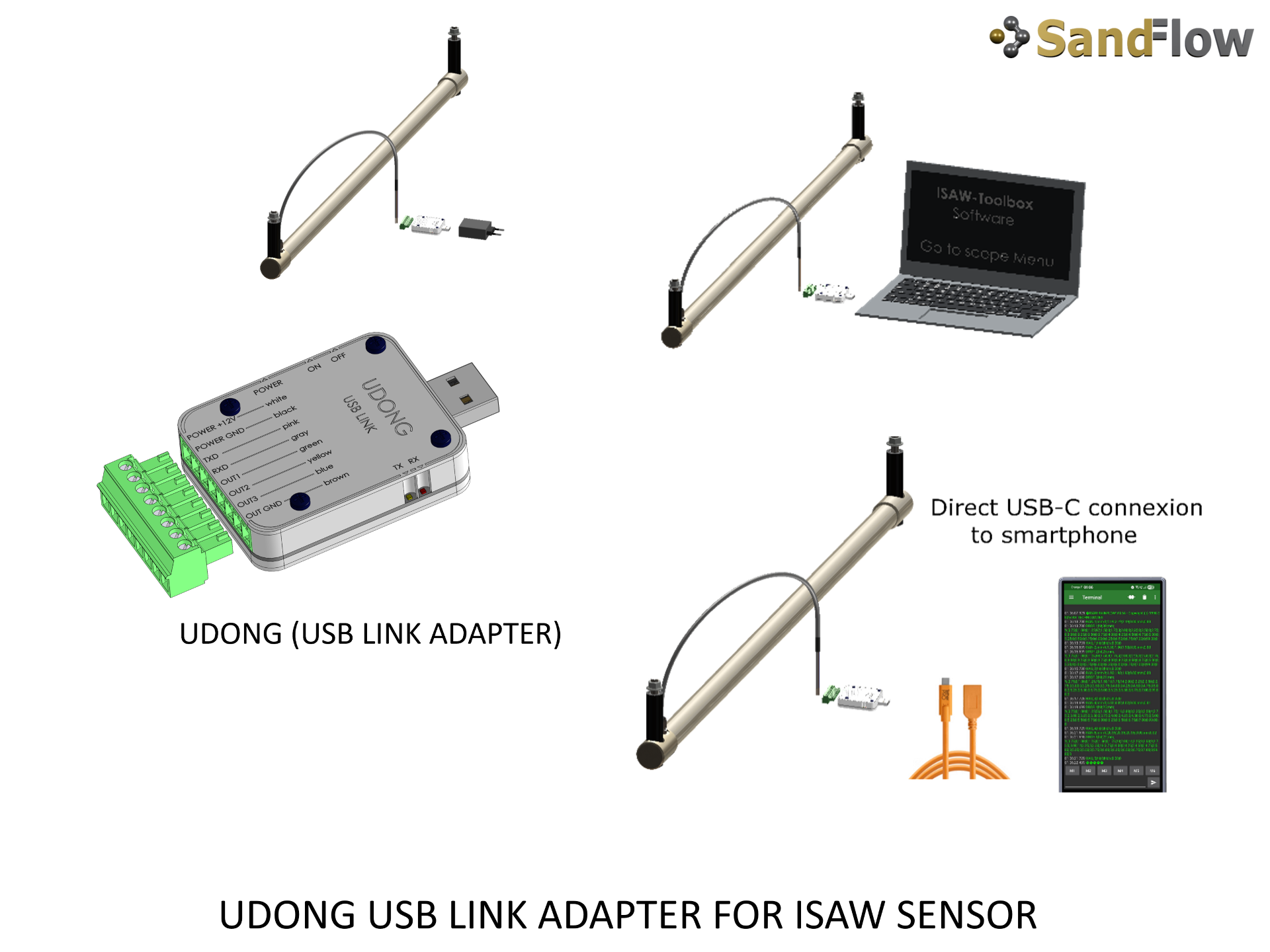

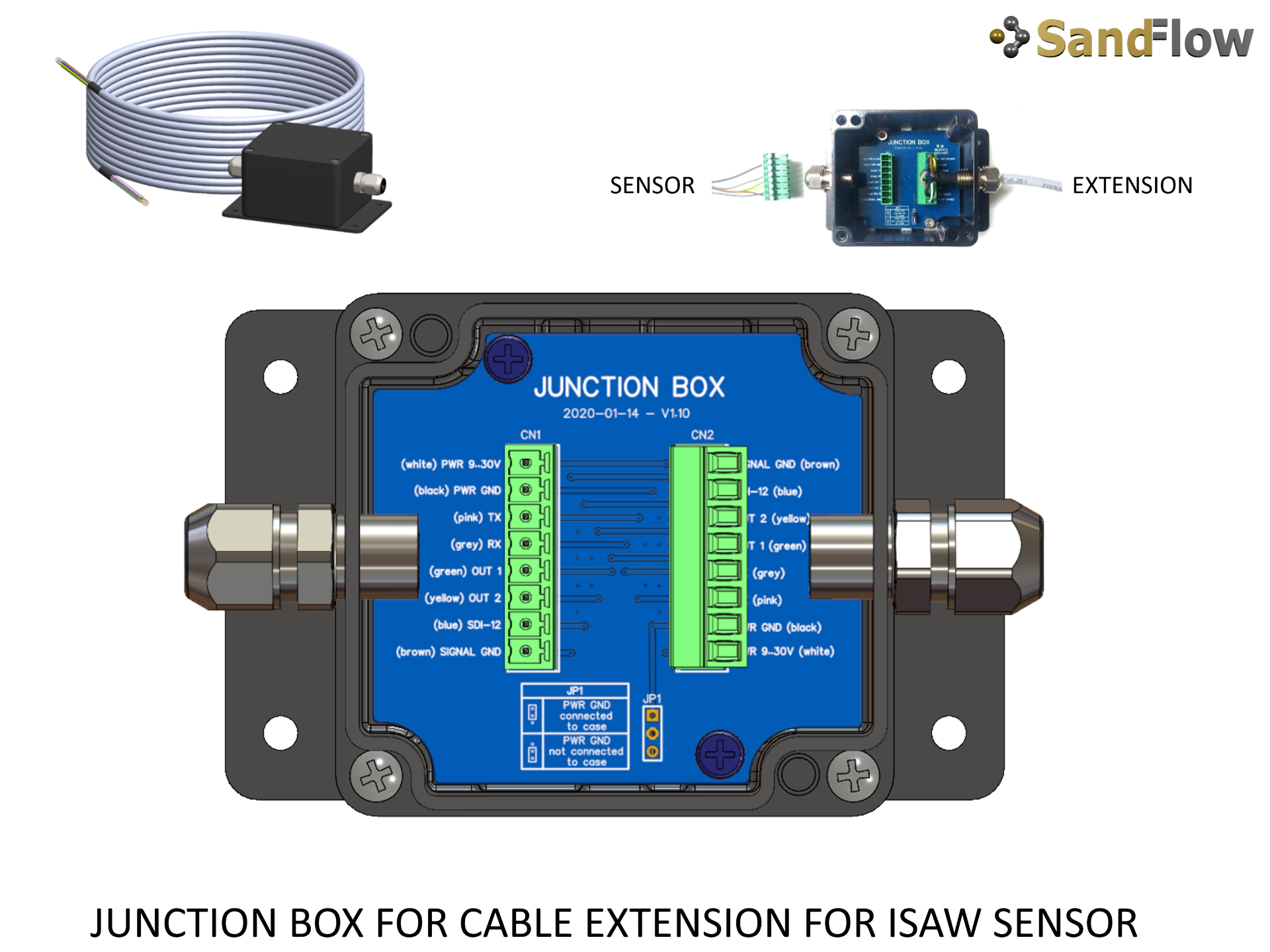

SF4 interfaces with the full range of modern data acquisition systems via standard outputs and adapters: analog, SDI-12, serial, Modbus, 4–20 mA, Cloud data link. It connects naturally to SCADA, BMS, PLCs, data loggers and more generally all common or custom environmental monitoring platforms.
From infrastructure protection to dune research
SandFlow SF4 supports a wide range of operational and scientific applications wherever wind-driven sand is a critical factor.
Infrastructure protection

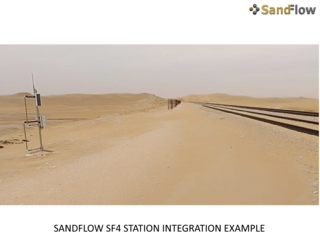

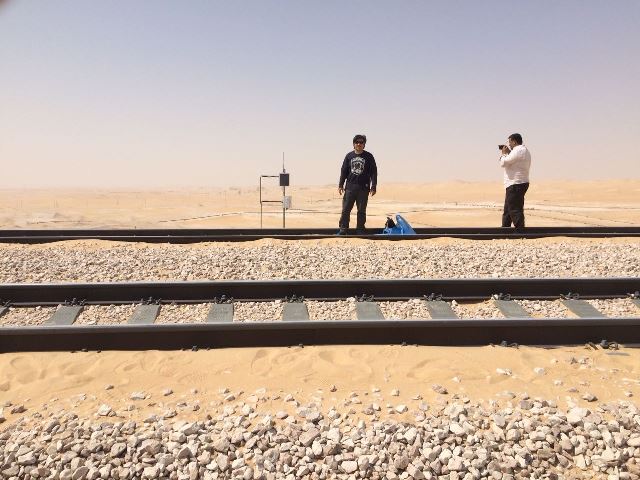

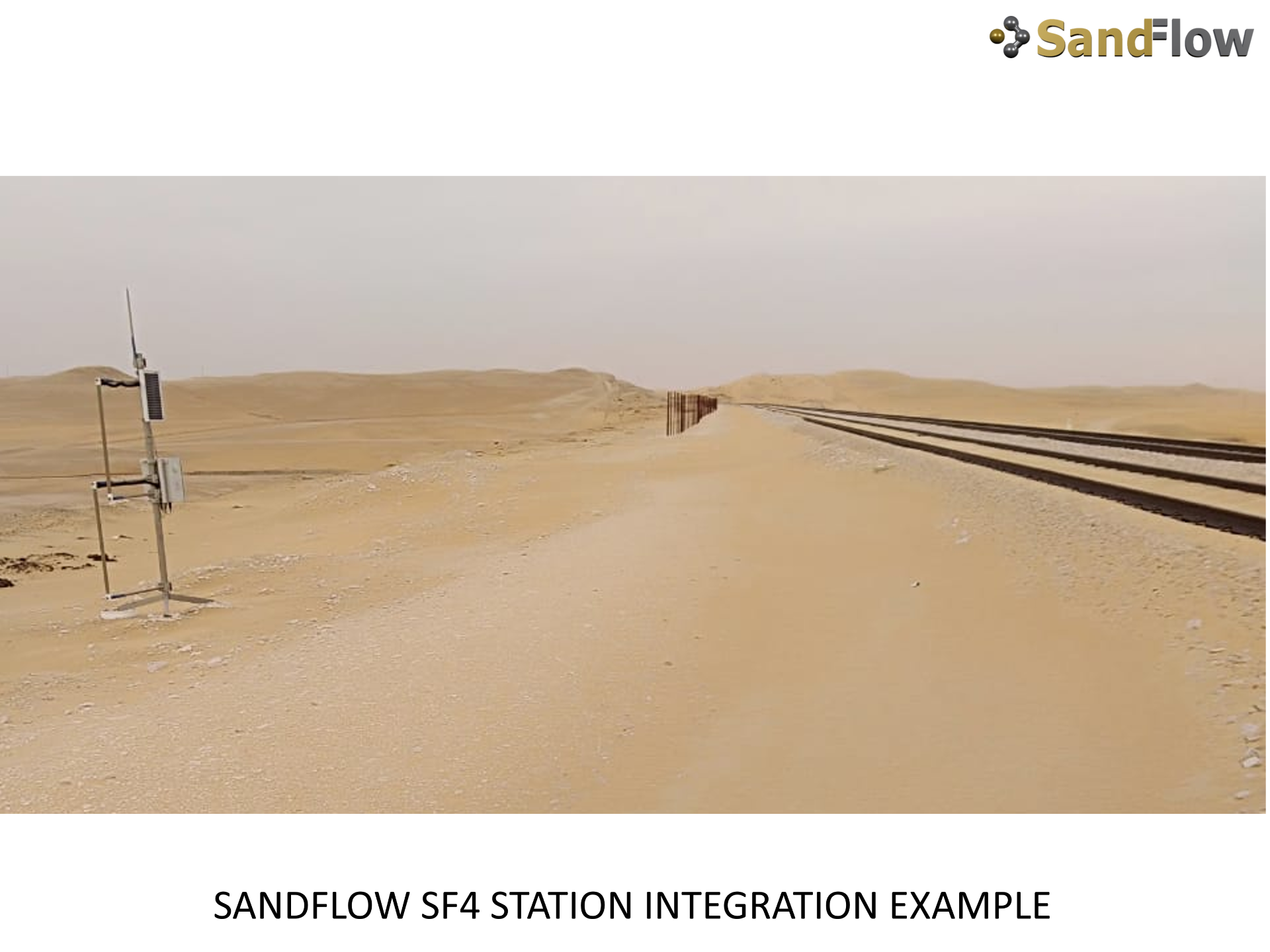

- Railways — Detect the onset of sand transport that can bury tracks, compromise ballast and obstruct signaling equipment. SF4 data informs barrier placement, maintenance scheduling and train-traffic management.
- Roads and highways — Monitor gust fronts and storm events that deposit dangerous sand accumulations and abruptly reduce visibility. Integrations with intelligent transport systems enable real-time alerts, speed-limit management and targeted clearance operations.
- Airports and aerodromes — Characterize sand-movement conditions around runways, navigation equipment and air-intake systems, helping to manage sweeping operations and mitigate engine-ingestion risk.
Energy sector: solar & wind
- Solar power plants (PV and CSP) — Distinguish between low-impact soiling events and highly abrasive storms. SF4 helps trigger panel-stowing or shutdown strategies and map zones of maximum sand load for optimized fencing, landscaping or vegetation planning.
- Wind-turbine farms — Use direct abrasive-flux measurements to manage leading-edge erosion, protect cooling systems and refine turbine siting. Threshold-based alarms support protective operating modes and long-term blade-degradation modeling.
Critical electrical & industrial sites
Substations, transmission corridors and industrial facilities — Provide early warning of sand conditions that threaten insulators, air-intake systems, access roads and sensitive equipment. Flux maps help determine where protective walls or deflectors will be most effective.
Industrial HVAC & air-intake protection
Use SF4 as a real-time indicator of sand load on filtration systems and cooling towers. Operators can implement dynamic filter management, cleaning routines and predictive maintenance based on actual abrasive conditions rather than fixed schedules.
Desert & coastal dune research

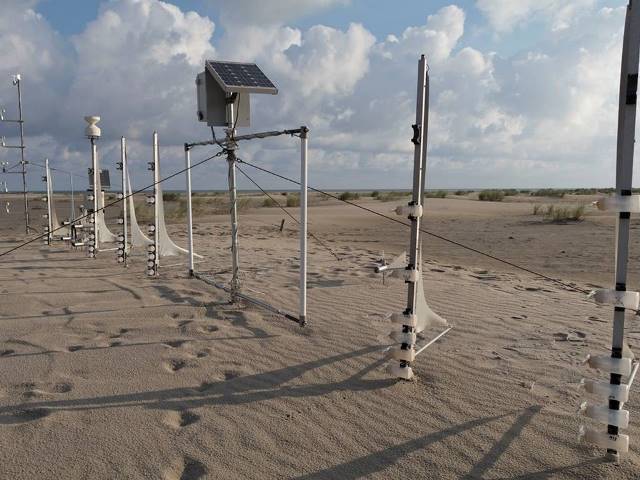

Geomorphology and coastal studies — Quantify sand-flux dynamics, validate numerical models and understand how dunes migrate under changing wind regimes. SF4 complements topographic surveys, remote sensing and other in-situ measurements.
Acoustic vibro-impact technology
SandFlow SF4 uses a refined vibro-acoustic principle derived from the long-proven FlowCapt family. The cylindrical tube acts both as a sensing surface for grain impacts and as a bluff body for airflow.
- Medium-to-coarse sand grains impact the hard-coated cylindrical tube.
- Impacts generate structure-borne vibrations inside a sealed cavity.
- An acoustic transducer converts these vibrations into electrical signals.
- A second channel analyzes the low-frequency signature of wind friction around the tube.
- Advanced digital signal processing separates sand-impact energy from pure wind excitation, delivering independent sand-flux and wind-speed values at time resolutions down to 1 second.
Benefits of this technology
- Vertically integrated flux measurement along the 1-meter sensing length.
- Excellent detection of saltation events, gust fronts and storm bursts.
- Real-time cumulative flux and threshold-based alerts for early-warning systems.
- Stable operation in extreme heat, strong winds and heavy sandblasting.
Core specifications
Measured parameters
- Sand mass-flux intensity (g·m⁻²·s⁻¹).
- Cumulative sand load (g·m⁻²) over user-defined intervals.
- Wind speed (m/s or km/h) via acoustic airflow channel.
Performance
- High sensitivity to medium-to-coarse sand (approx. 300–600 μm); efficiency 30–100% in typical dune sands.
- Lower but usable sensitivity to fine sands; dust-dominated events may require complementary sensors.
- Temporal resolution down to 1 s with MIN / AVG / MAX / STD statistics.
- Dynamic range up to ~250 g·m⁻²·s⁻¹ (flux) and ~5–250 km/h (wind).
Outputs & protocols
- Analog 0–2.5 V or 0–5 V (continuous or pulsed).
- SDI-12 data interface.
- RS-422 / RS-485 ASCII serial output.

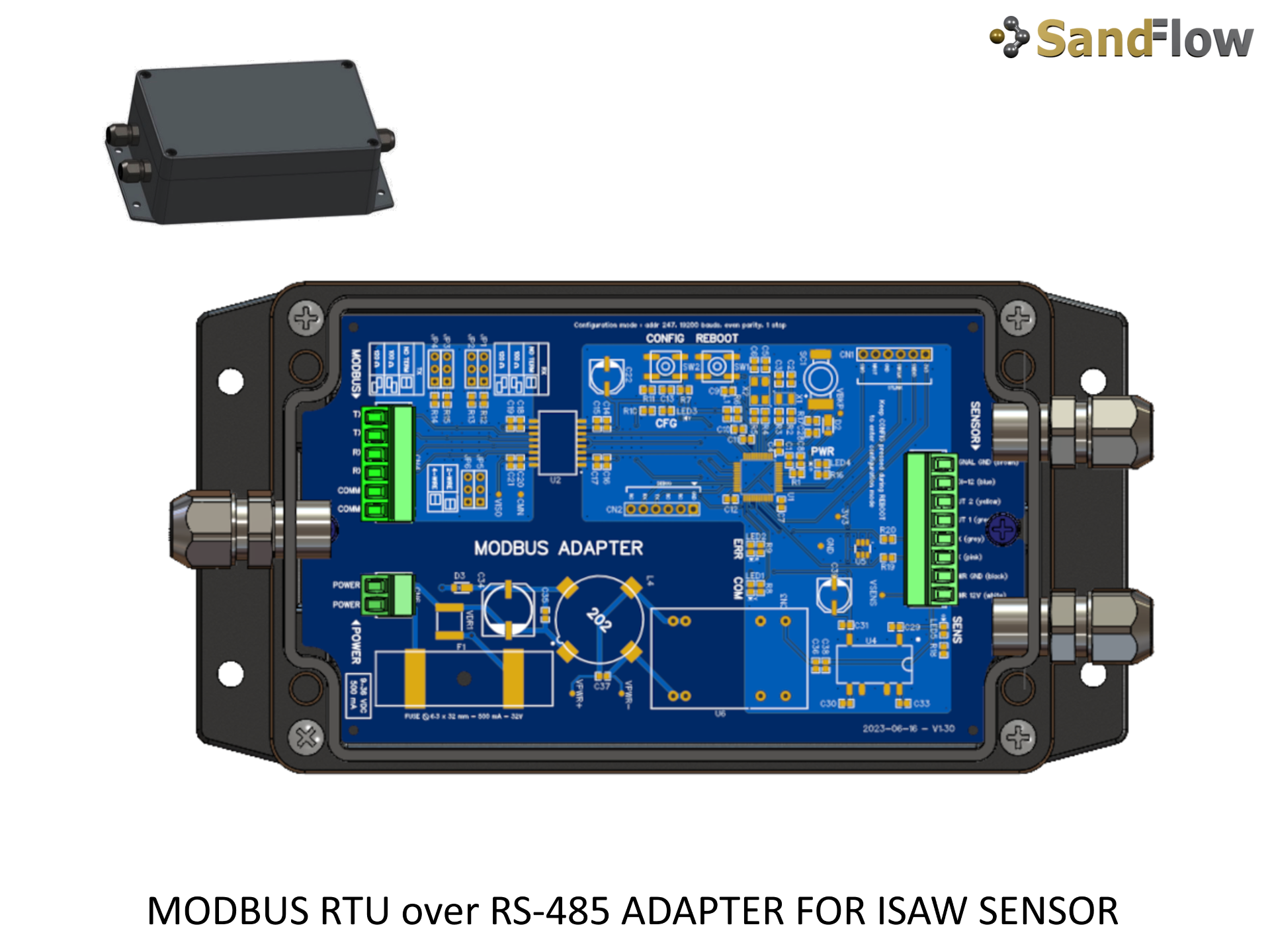

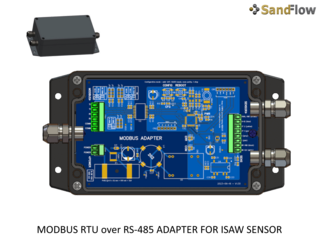

- Modbus-RTU via optional MOBUS adapter.

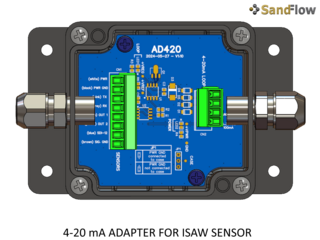

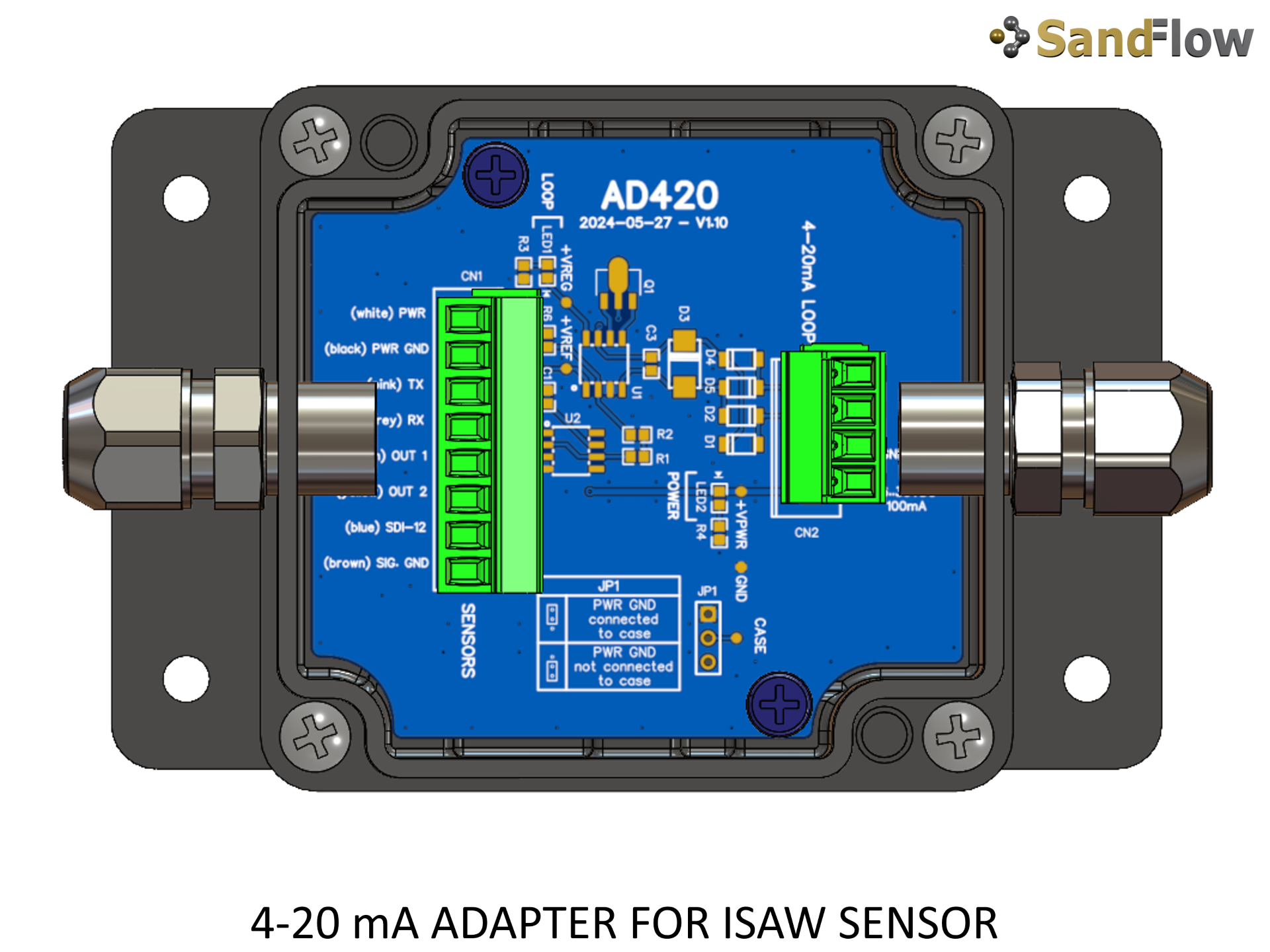

- 4–20 mA loops via optional AD420 adapter.

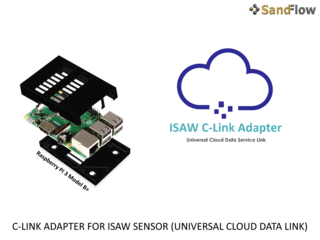

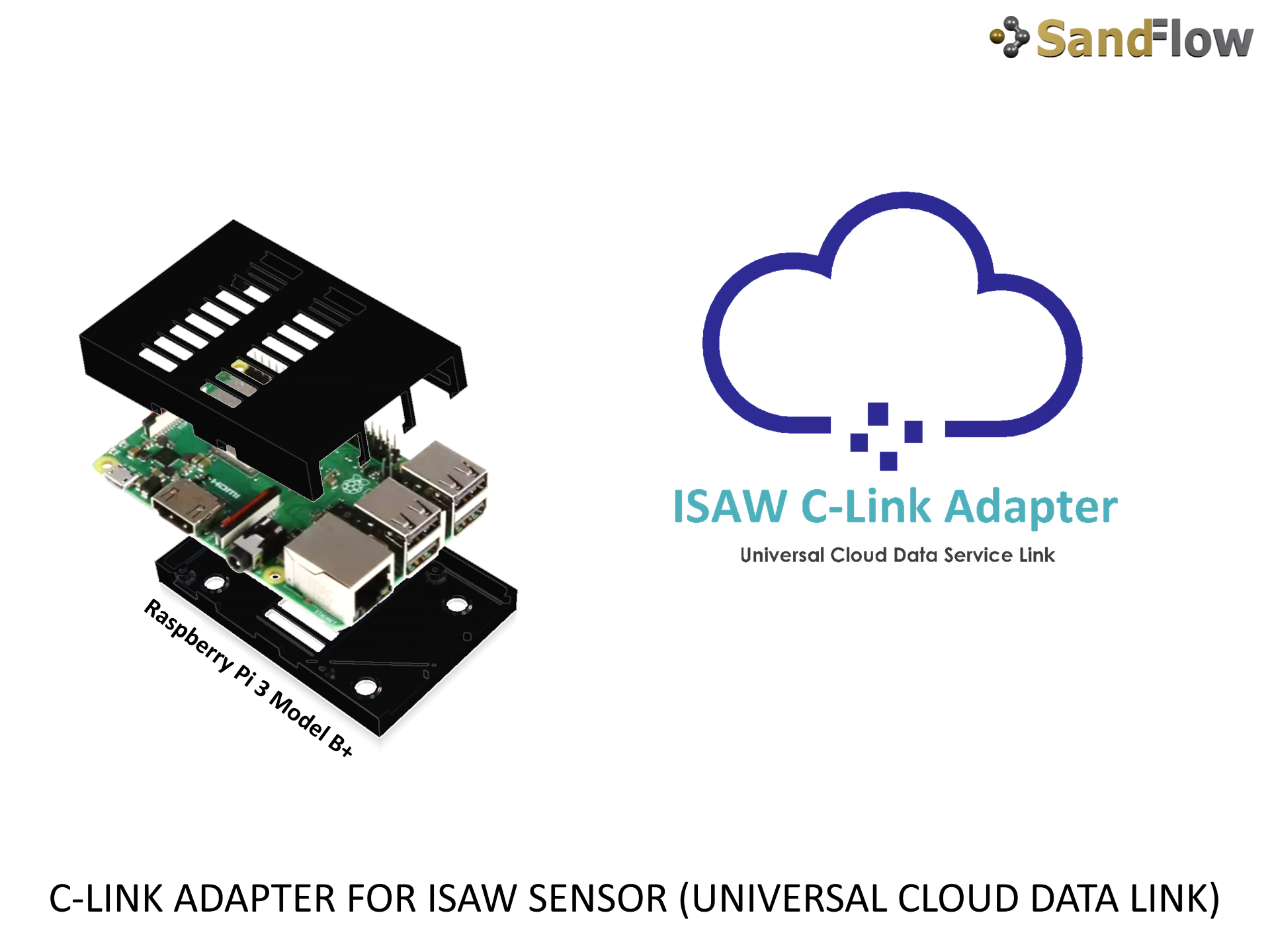

- Cloud Data Link interf. (C-LINK)
Power & acquisition
- Ultra-low average consumption (order of 2 mA depending on configuration).
- Configurable acquisition / stand-by cycles (A–C–M mode).
- Designed for autonomous, off-grid stations with solar or battery power.
Mechanical design

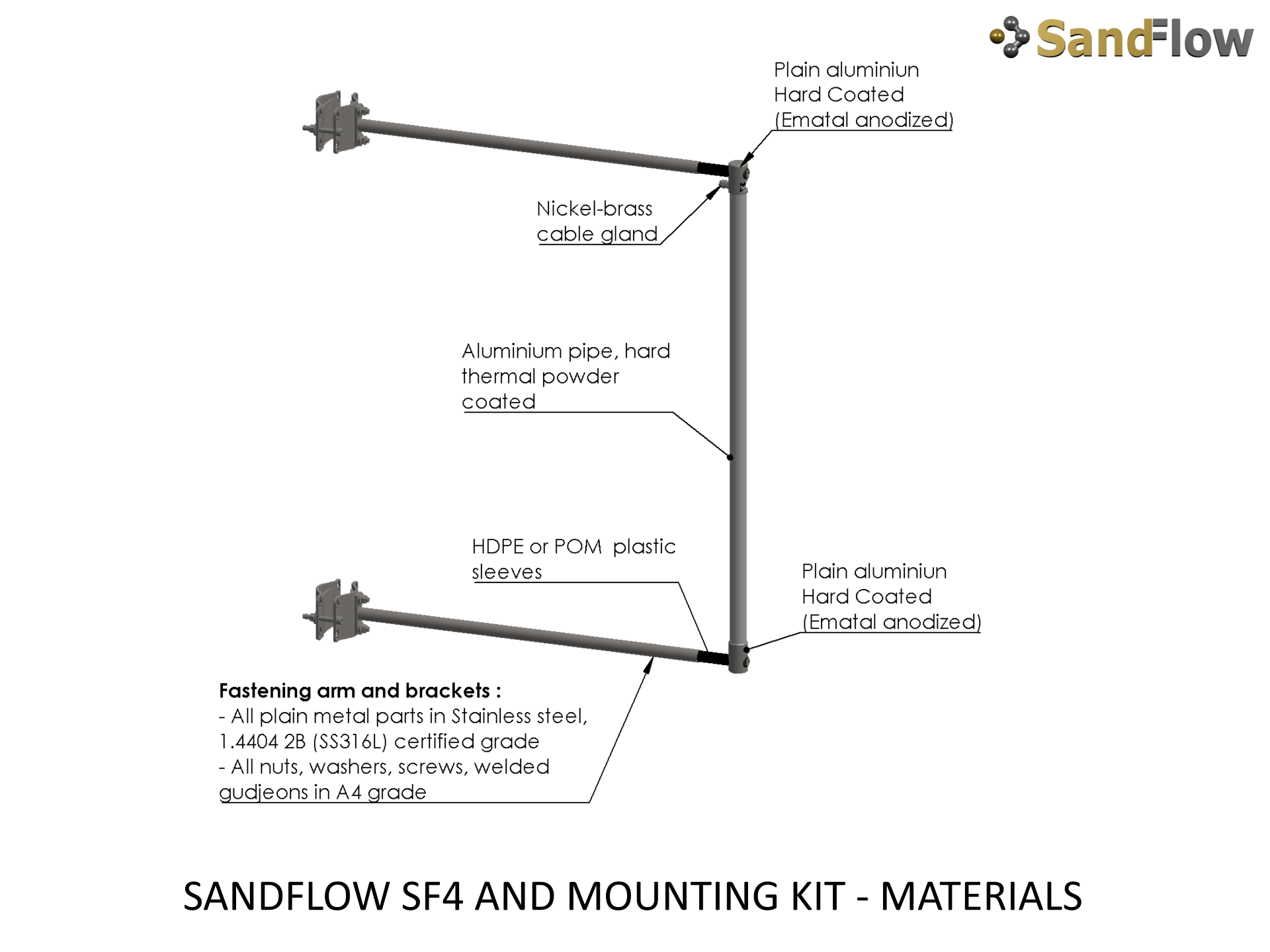

- Approx. 1-meter coated cylindrical tube (about 0.92 m active length), optimized for sand impact and wind excitation.

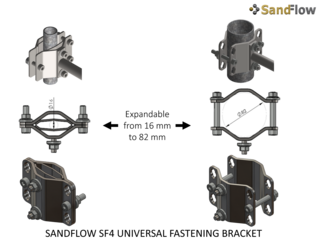

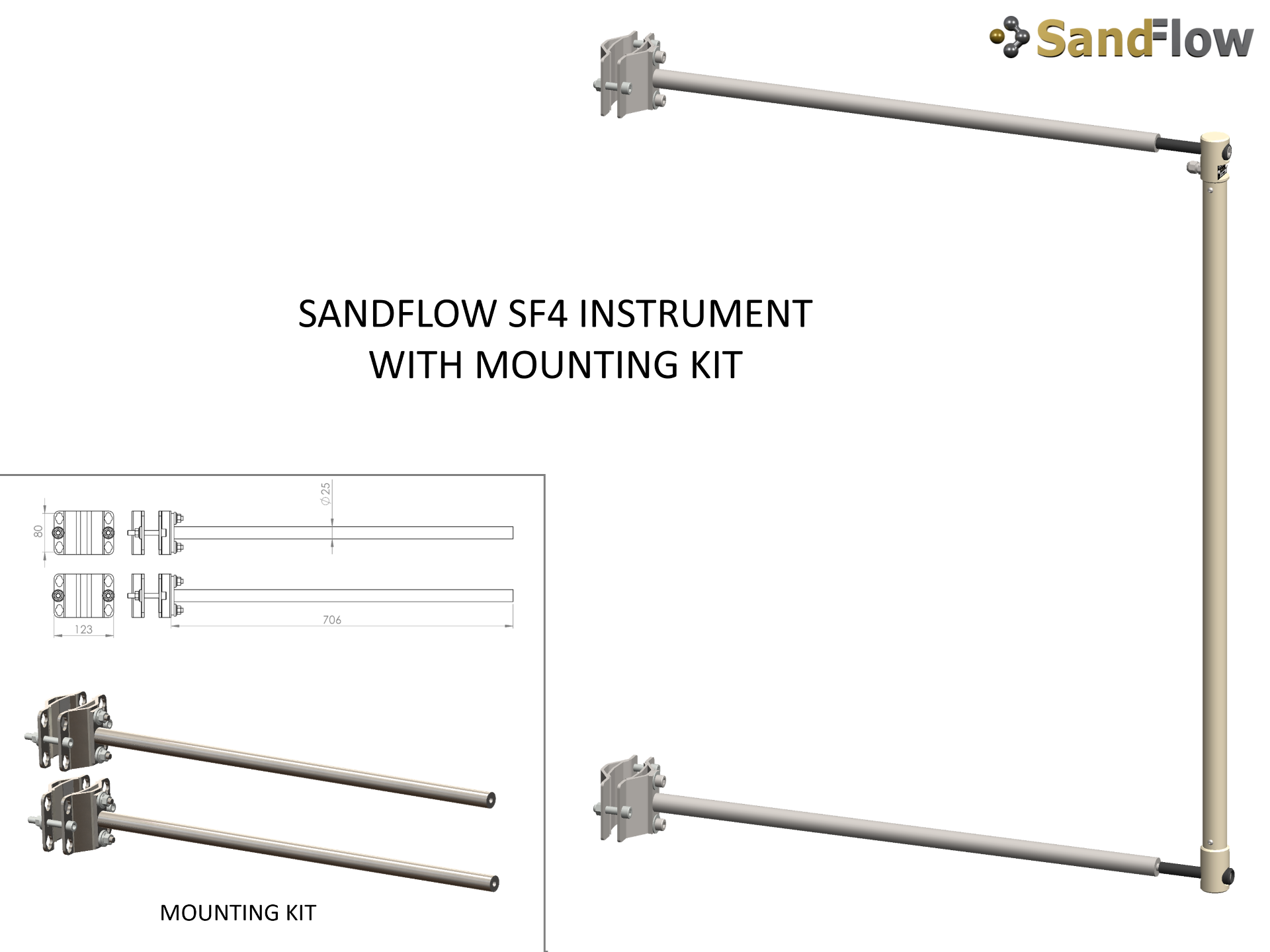

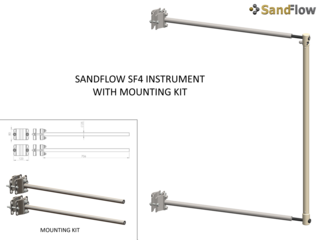

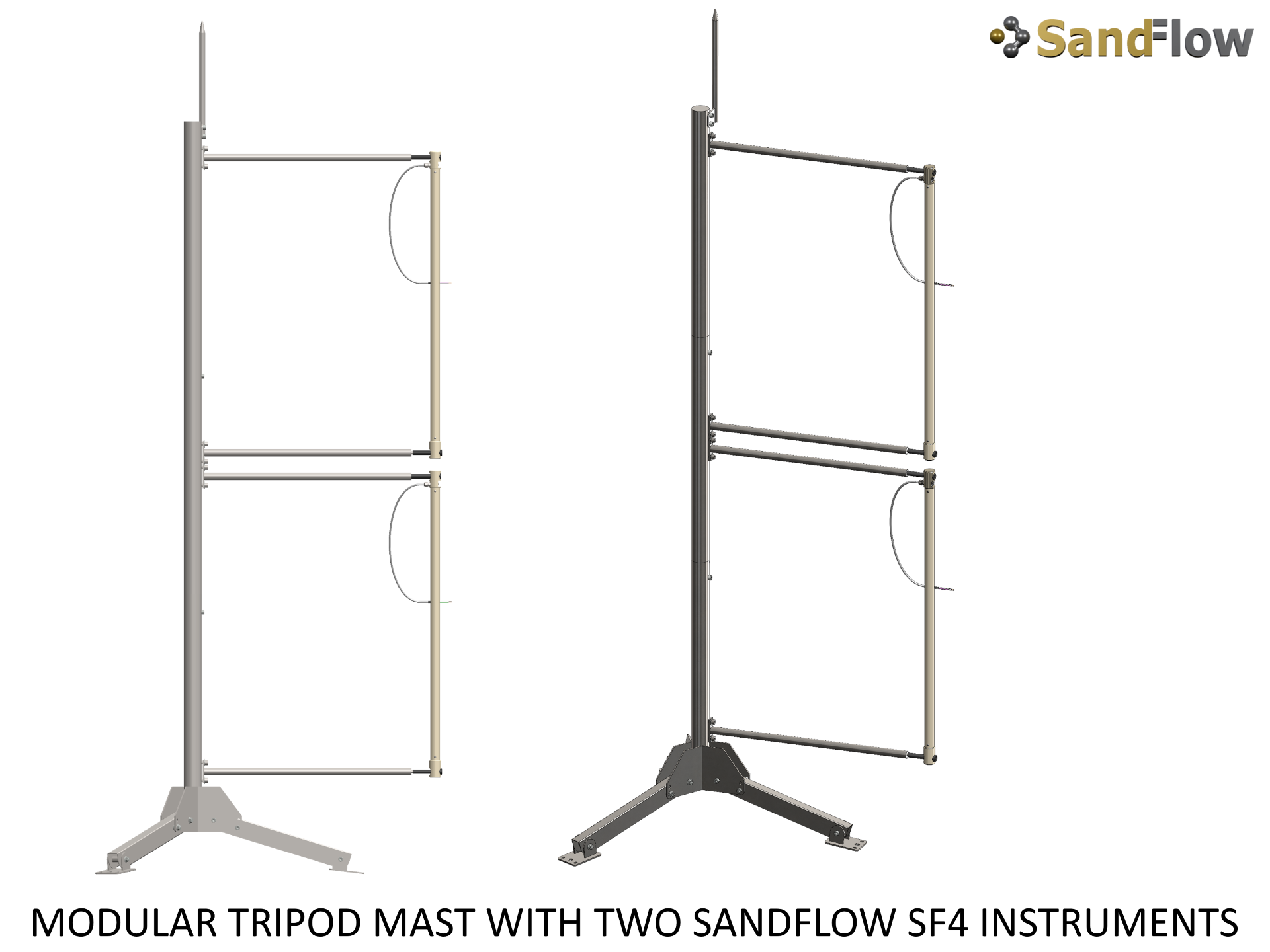

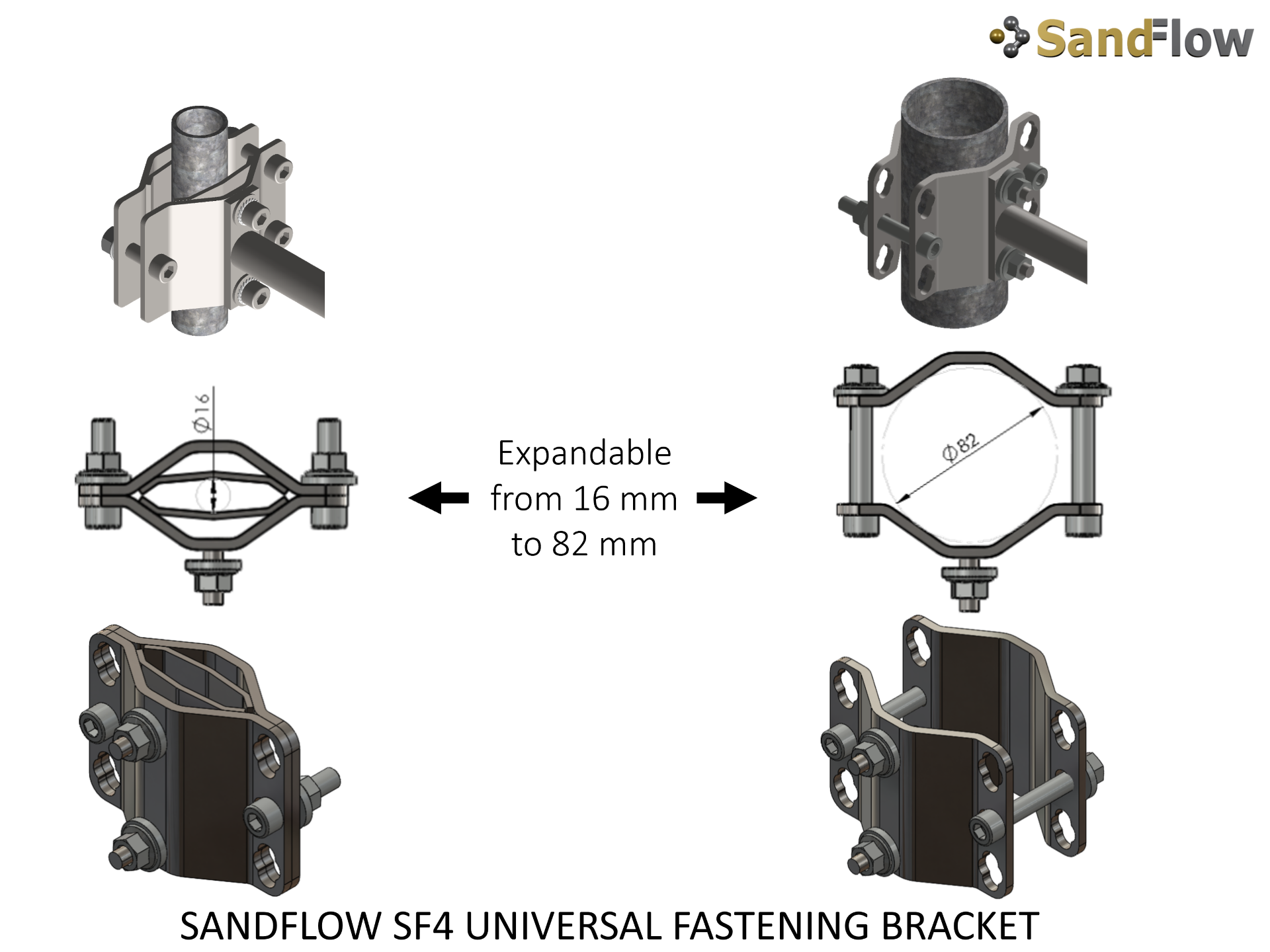

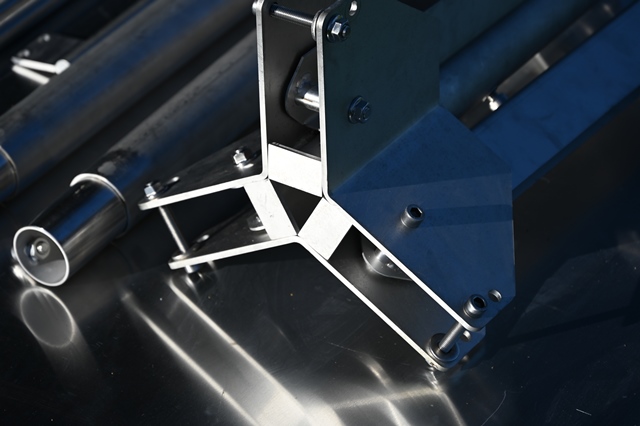

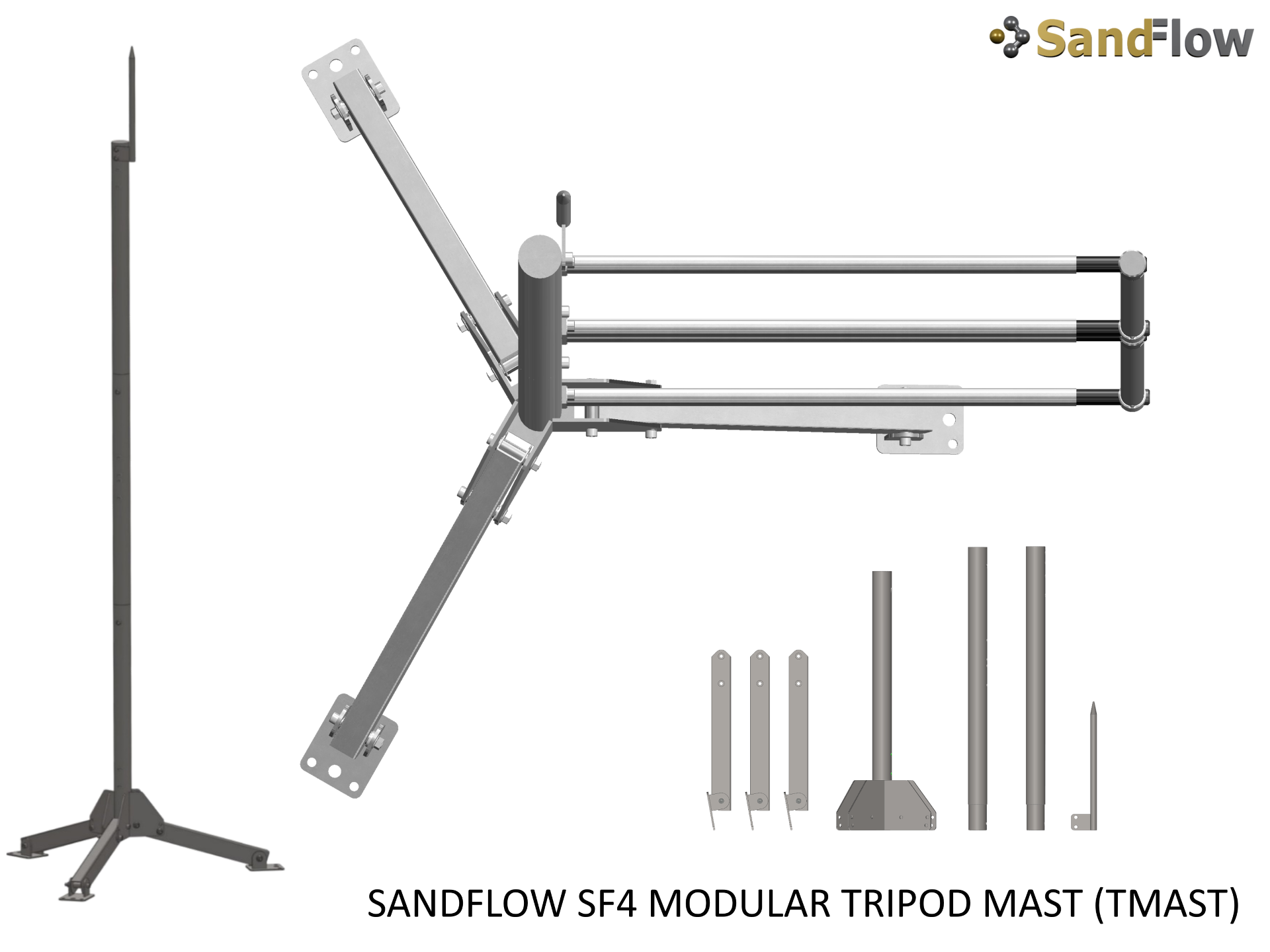

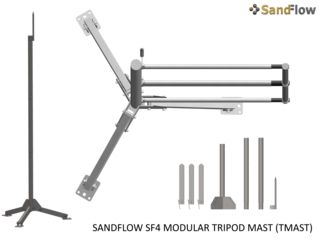

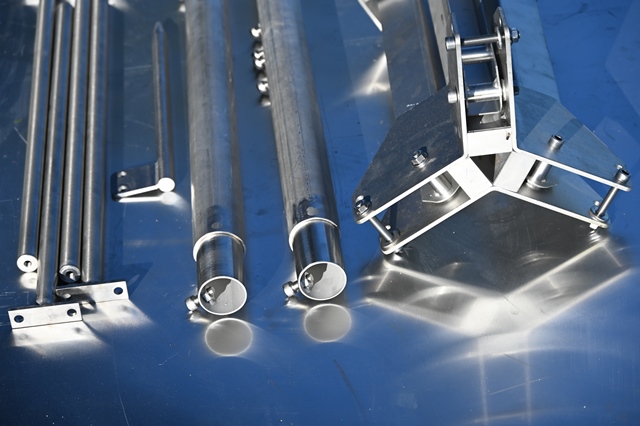

- Abrasion-resistant composite surface, stainless-steel mounting arms and heavy-duty brackets.
- Sealed electronics, IP67 environmental protection.
Calibration & traceability
- Lifetime factory calibration with parameters stored in non-volatile memory.
- Supports plug-and-play replacement and long-term stability.
- Compatible with institutional QA/QC and network calibration procedures.
WMO conformity & field use
WMO conformity of the SandFlow SF4
SandFlow SF4 operates in a domain — sand drift and aeolian sediment flux — for which the World Meteorological Organization (WMO) does not yet define specific technical standards or performance requirements. Nevertheless, its design, calibration and operational characteristics follow the general principles of WMO-No. 8 (Guide to Meteorological Instruments and Methods of Observation) for siting, exposure and co-located wind measurements, while its traceability and long-term reliability align with WMO-No. 49 Technical Regulations.
When used in meteorological or environmental networks, SF4 data can be encoded consistently with WMO-No. 306 (BUFR) present-weather descriptors for blowing sand and sandstorm phenomena. Although no WMO standard governs sand-flux measurement itself, SandFlow SF4 satisfies the broader WMO guidelines applicable to robust, field-grade environmental monitoring instruments.
Proven in desert & coastal environments

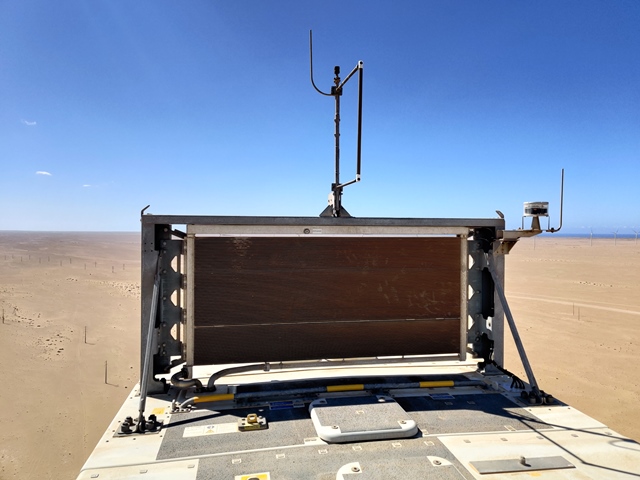

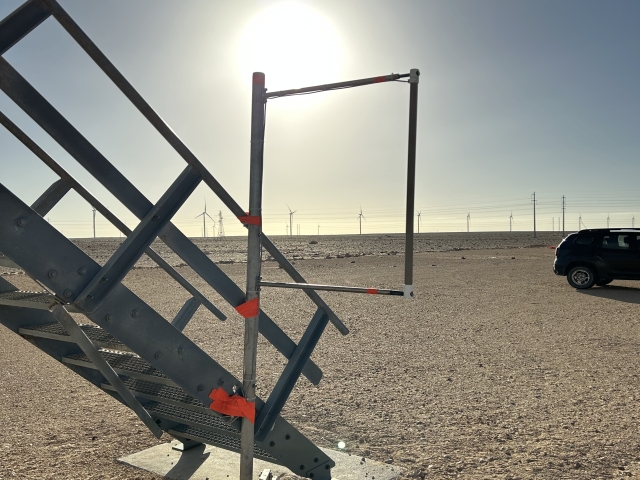

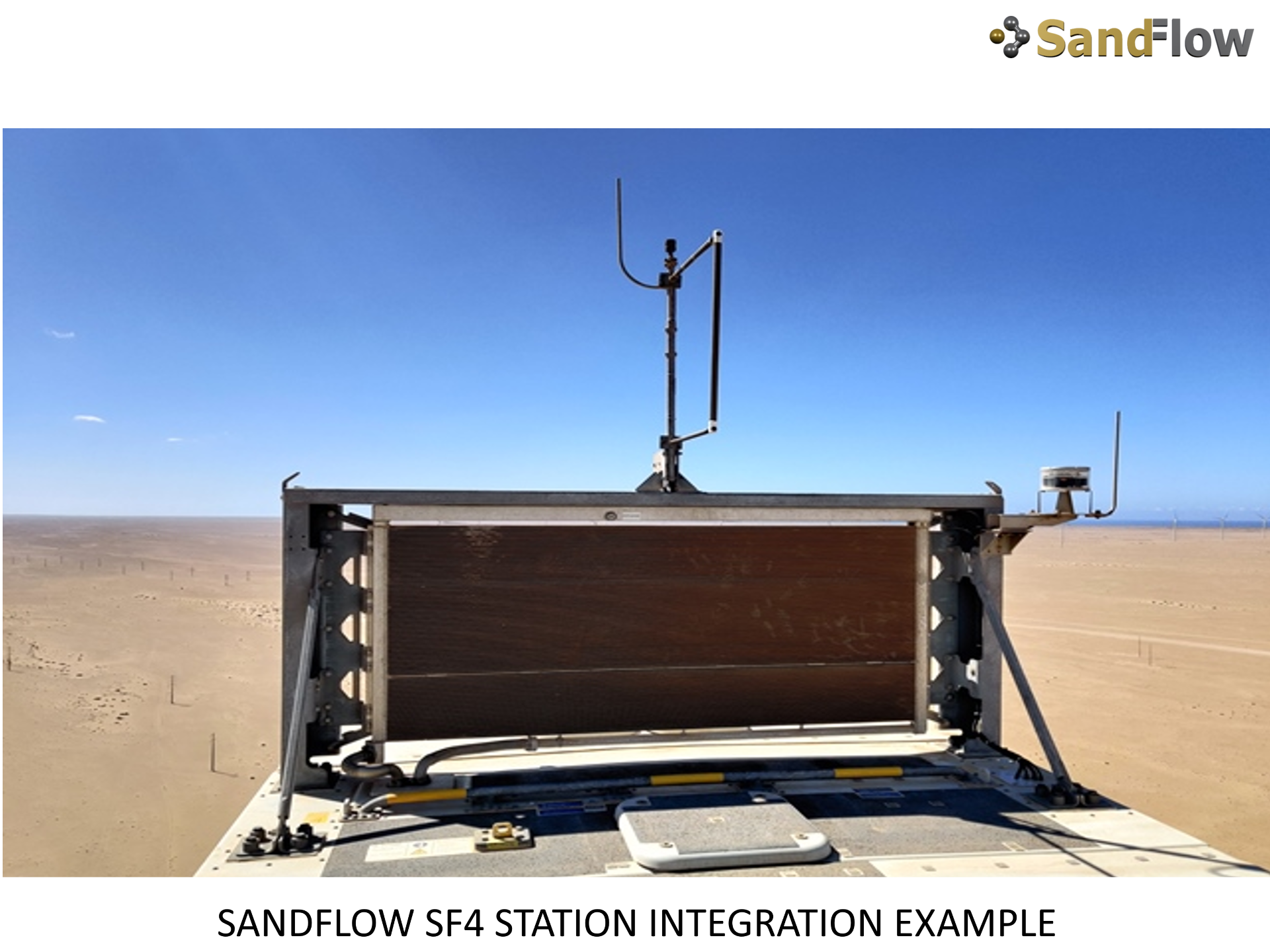

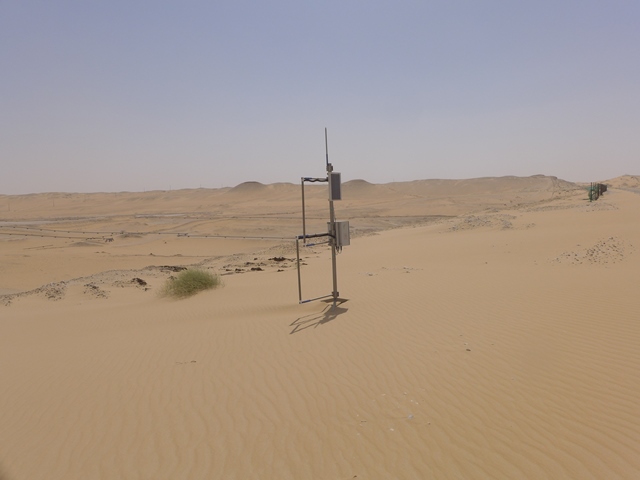

SandFlow SF4 technology has been deployed for many years on desert railways and highways, large solar and wind farms in the Middle East and other arid regions, critical electrical substations and industrial facilities, as well as in coastal dune fields and research observatories.
Across these contexts, SF4 has demonstrated high robustness under sandblasting, reliable very high-resolution data, strong sensitivity to medium/coarse sands, effective early-warning capabilities and excellent interoperability with modern monitoring architectures.
Ready to monitor sand transport, not just wind?
Our team can help you design sensor networks, configure thresholds and integrate SandFlow SF4 into SCADA, BMS, remote GSM or LPWAN/IoT or many other platforms for infrastructure protection and aeolian-process studies.
